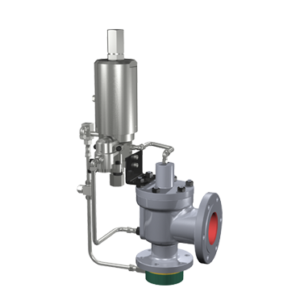

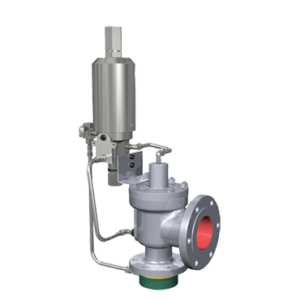

2900-40 Series Pilot Operated Safety Relief Valve
Inlet Sizes
1” through 12”
Inlet Ratings
ASME Class 150 to 2500
Outlet Sizes
2” through 16”
Outlet Ratings
ASME Class 150 to 300
Orifice Sizes
D through W
Set Pressure Range
40 psig to 5800 psig
Temperature Range
-20°F to 505°F, above 505°F with heat exchanger
Materials
Carbon steel base and 316 stainless steel internal components; pilot valve 316 stainless steel
Standards and Regulations
ASME B & PVC, Section 1 (Steam & Liquid)
Pressure Equipment Directive
China Manufacturing License
Description
Hydro plug is not required since pilot can be gagged.
Non-flowing pilot design.
Maximizes throughput by allowing economizer to operate at higher pressures with the use of pilots without seat leakage. Increases efficiency by providing repeatable seat tightness.
For overpressure protection of economizers when a liquid certified safety relief valve or pilot operated safety relief valve cannot be used due to a steam relief scenario. ASME Section 1 certified on steam and water per ASME Code Case 2446.
Includes pilot line pressure snubber to minimize chatter from rapid pressure excursions and water hammer.
